Technical specifications:

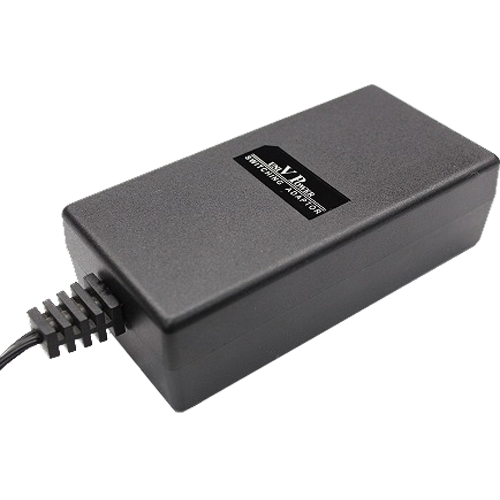

Model: SB-182A0F

Input Voltage: 90~264 VAC
Operating Voltage: 100~250 VAC
Input Frequency: 47~63Hz
Input Current: 0.8A (rms)
Operation Temperature: 0℃~40℃
Storage Temperature: -10℃~+85℃
EMI CE, FCC CLASS B,CISPR 22,CLASSB
Line Regulation: ±1%MAXIMUM
Hold-up Time: 10msec at 115Vac
Inrush Current: 30 Amps @ 100Vac
Withstand Voltage: 3000Vac from input to output

O/P VDC: 18VDC

O/P Current: 2.0A

Peak: 2.4A

Total O/P Tolerance: ±5%

OVP: 20VDC

Max O/P Power: 36.0W

Typical Efficiency: 75%
