Technical specifications:

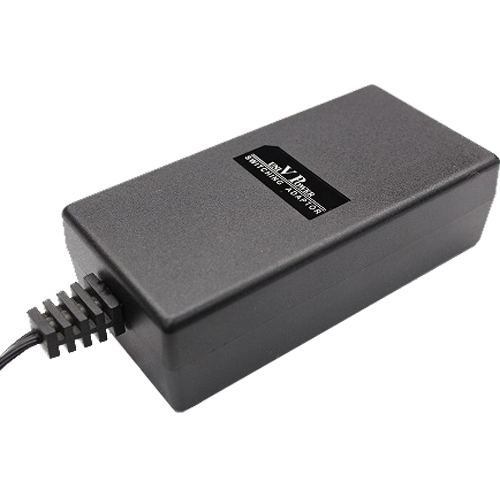

Model: SB-064A5F

Input Voltage: 90~264 VAC
Operating Voltage: 100~250 VAC
Input Frequency: 47~63Hz
Input Current: 0.8A (rms)
Operation Temperature: 0℃~40℃
Storage Temperature: -10℃~+85℃
EMI CE, FCC CLASS B,CISPR 22,CLASSB
Line Regulation: ±1%MAXIMUM
Hold-up Time: 10msec at 115Vac
Inrush Current: 30 Amps @ 100Vac
Withstand Voltage: 3000Vac from input to output

O/P VDC: 6VDC

O/P Current: 4.5A

Peak: 5.5A

Total O/P Tolerance: ±5%

OVP: 8VDC

Max O/P Power: 27.0W

Typical Efficiency: 70%
